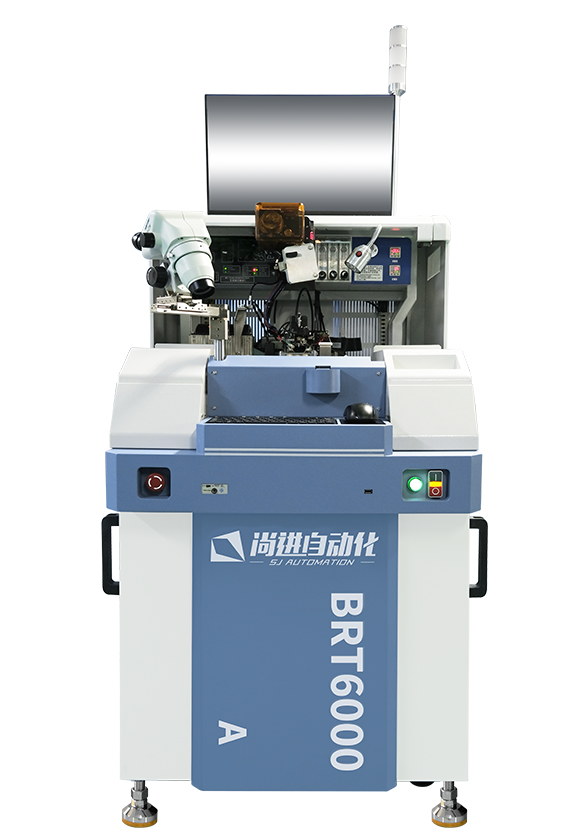

FULLY AUTOMATIC WIRE BONDER
BRT6000A
FEATURES:
1. High rigidity heater block
2. High reliable motion control system
3. Rigid X-Y Table system
4. Programmable focus optics
5. Dual-Frequency transducer
TECHNICAL SPECIFICATION
Bonding Accuracy | ±2μm@3σ |
---|---|
Bonding Speed | 45ms(2mm wire length) |
Wire Type | Standard:Gold(18~50μm); Option:Copper, Ag, Alloy wire;(18~50μm) |
Bonding Stroke | 60mm×68mm |
Length of Wire Bonding | ≤7mm |
Min Bond Pad Pitch | 45μm |
Spool Diameter | 50mm (2 inches) |
---|---|
Wire Bonding Capacity | 30,000 wires/panel |
Optical System | Option between x2~x4 and x1.6~x3.6 times, both with programmable focus |
Bond Force | 0~360g |
Operation System | Windows |
Weight | 600kg |
FACILITY REQUIREMENT
Input Voltage | 220V±10%@50/60Hz |
---|---|
Rated Power | 2KW |
Compressed Air Pressure | ≥0.35MPa |
---|---|
Footprint | 1300 x 1000 x 1700(W x D x H) |
