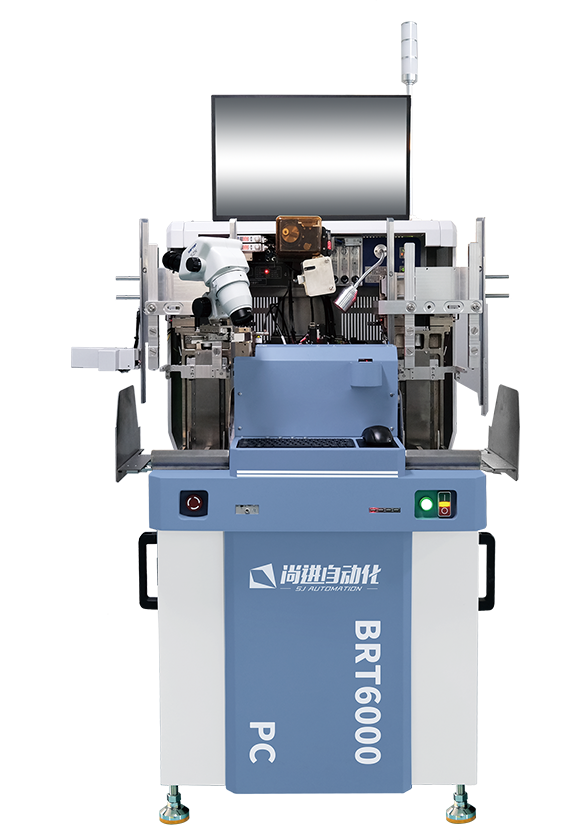

BRT6000pc
FULLY AUTOMATIC WIRE BONDER

BRT6000PC

FEATURES:

1. Dual-Frequency transducer
2. High rigidity heater block
3. High reliable motion control system
4. PR Look Ahead feature
5. Programmable automatic material handling system
6. Multi-stages EFO sparking
7. Rigid X-Y Table system

TECHNICAL SPECIFICATION

Bonding Accuracy±3μm@3sigma
Bonding Speed45ms(2mm wire length)
Wire TypeGold, Copper, CuPd, Ag, Alloy wire(18~50μm)
Bonding StrokeX=60mm, Y=70mm
Length of Wire Bonding≤7mm
Loop Height Accuracy±25.4μm
Bond Force0~360g
Spool Diameter50mm (2 inches)
Loop TypesQ-Loop, SQ-Loop, BGA-TWS
Optical SystemOption between x2~x4 and x1.6~x3.6 times, both with programmable focus
Operation SystemWindows
Weight650kg

FACILITY REQUIREMENT

Input Voltage220V±10%@50/60Hz
Rated Power2KW
Compressed Air Pressure≥0.35MPa
Footprint1300 x 1000 x 1700(W x D x H)
